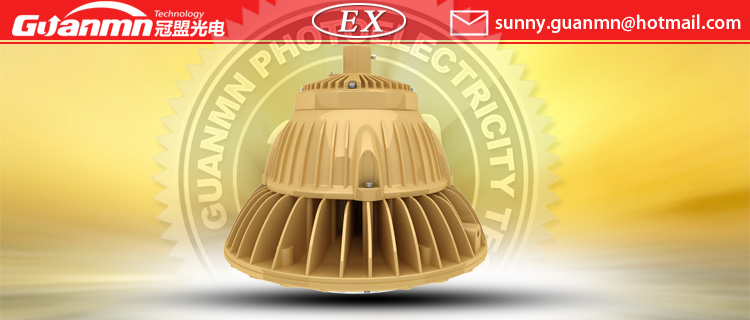

Explosion-proof solid security lighting 90W100W natural gas station

[Applicable scope]

It is widely used in  oil drilling, oil refining, chemical industry, military industry and other dangerous environment and Marine oil platform, oil tankers and other places for general illumination lighting and assignments;

It is applicable for energy-saving reform projects and locations where are difficult to overhaul or    replace;

It is applicable for damp locations where have high protection requirements.

It is applicable for zone 1 and zone 2 in explosive gas atmosphere;

It is applicable for explosive gas atmosphere CAT. ⅡA ,ⅡB andⅡC ;

It is applicable for temperature groups T1-T6.

[technology parameters]

Type: GMD 130-C

Ex-mark: Exd II CT6

Input Voltage: AC/DC 90V~220V±20% 50Hz

Rated Power：90W 100W

Power Factor：0.98

IP Grade :   IP66

Corrosion-proof Grade：WF2

Cable Entry: G3/4" in general, suitable for cables of Φ10mm~Φ14mm

Terminal block: wires≤2.5mm²

Installation :Ceiling/Bracket/Pendant/Wall30°/Fence/Flange mounting

Operating height: 8 ~ 12 m

Net Weight：8kg

Dimension：300mmx300mmx260mm
